Completed OIR- GFR- BMR1- Z59 June 2011

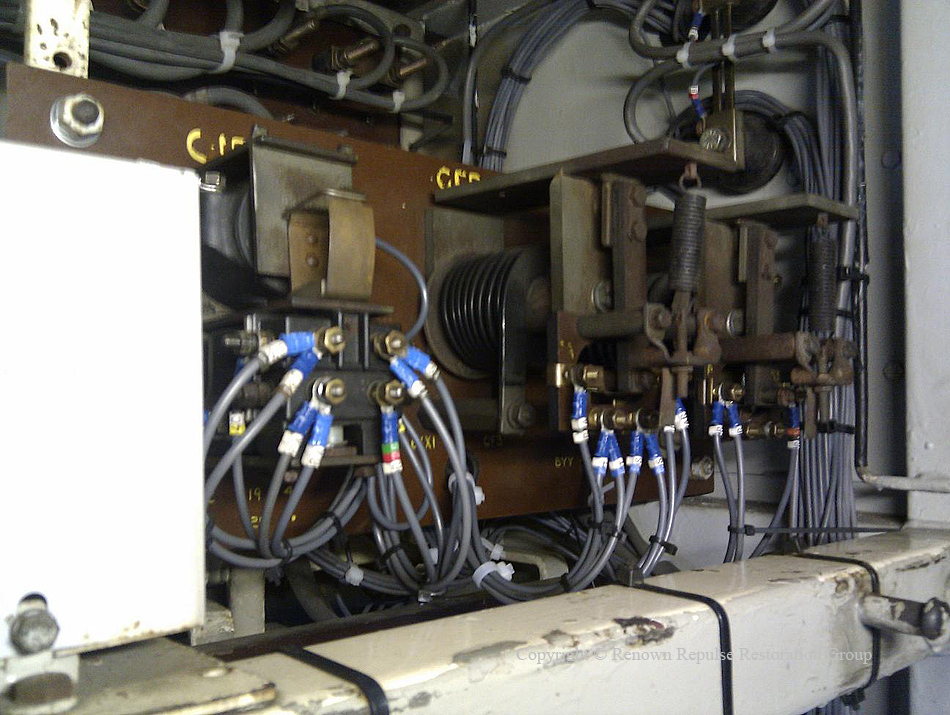

Here the finished Generator Field relay board is seen in June 2011. Left to right, the items are the Overload Interlock Relay (OIR), Generator Field Relay (GFR) and no.1 Blower Motor Relay (BMR1). The grey box far left houses the Control Circuit Governor (CCG), and just visible above BMR1 is the Battery Charge Ammeter Shunt.
2011, June 2011
